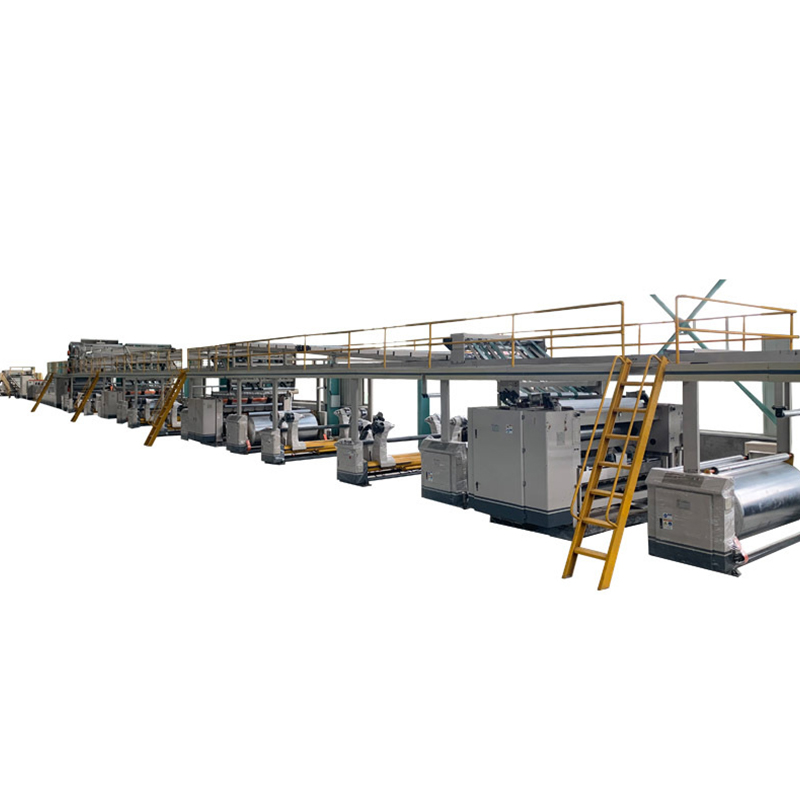

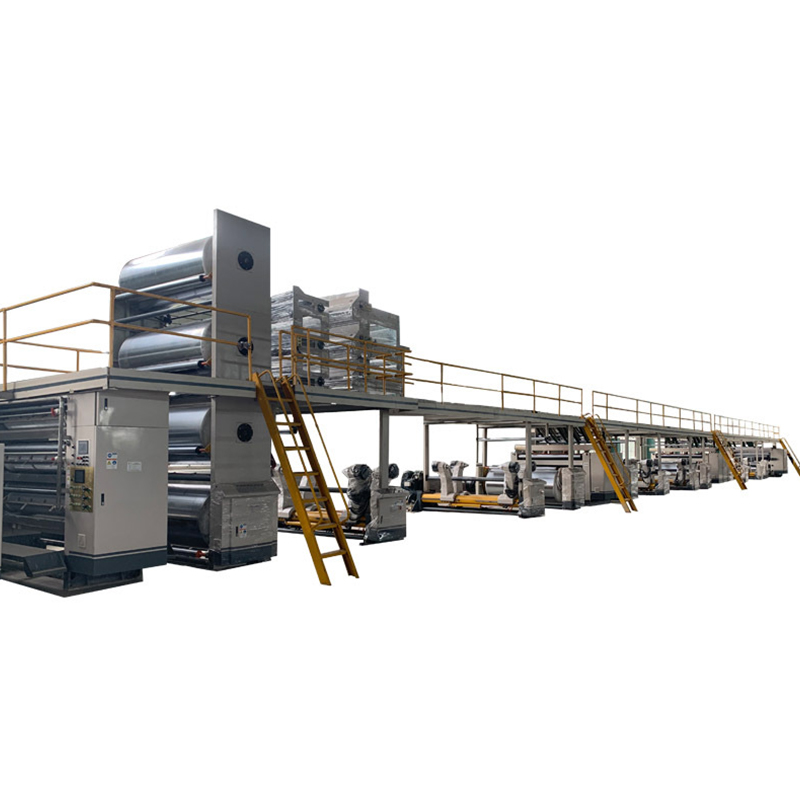

1400 Corrugated Cardboard Production Line

1. 1400 corrugated board production line product introduction

Corrugated cardboard, as a widely used material in the packaging industry, is favored because of its lightweight, high strength and good shock resistance. With the continuous growth of market demand, paperboard production technology is also constantly developing. 1400 corrugated board production line is one of the more advanced production equipment on the market, and its characteristics of high efficiency, energy saving and environmental protection make it occupy an important position in the cardboard production industry.

Production speed: Generally can reach more than 120 meters per minute, up to 200 meters, to meet the needs of large-scale production.

Cardboard specifications: can produce various specifications of corrugated cardboard, common single-sided, single-tile, double-tile, etc., thickness from 3mm to 10mm.

Motor power: The main motor power is usually between 55kW and 75kW, with high power density and efficiency.

Control system: Equipped with PLC control system to achieve fully automated production, reduce manual intervention, improve production efficiency and product consistency.

Material adaptability: It can process many types of raw materials, including recycled paper, wood pulp paper, etc., which has strong adaptability.

2. How it works

The working principle of 1400 corrugated cardboard production line can be roughly divided into the following steps:

1. Raw material preparation: According to the specifications and requirements of the product, select the appropriate paper raw materials for cutting and processing.

2. Paper loading process: Through the automatic paper loading device, the raw materials are sent to the production line to ensure that the paper is smooth and smoothly entered the next process.

3. Corrugated forming: Under the action of the heating roller, the paper is heated and pressurized to form a corrugated structure. This process is the key to corrugated cardboard molding.

4. Bonding: The corrugated paper and the face paper are bonded by glue to form a preliminary corrugated board.

5. Correction and cutting: After the correction device and cutting knife, the cardboard is cut into the required specifications and sizes to ensure the accuracy of the product.

6. Finished product output: The final corrugated board is sent to the finished product area through the conveyor belt, ready for packaging and transportation.

3. Advantage analysis

1. High performance

The design of 1400 corrugated board production line focuses on production efficiency, and greatly improves production capacity through automatic control and high-speed operation. The higher production speed means that enterprises can better meet the market demand and enhance competitiveness.

2. Energy saving and environmental protection

In the design of the production line, the concept of energy conservation and environmental protection is fully considered, and advanced energy-saving technology is adopted to reduce energy consumption. In addition, the waste generated in the production process can be recycled, in line with the requirements of sustainable development.

3. Stable product quality

Due to the use of PLC control system, all aspects of the production process are precisely controlled, thus ensuring the consistency of product quality. Whether in terms of thickness, strength or flatness, the production of corrugated cardboard can reach a high standard.

4. Easy to operate

The operation interface of the production line is friendly, and the operator can master it through simple training. At the same time, the high degree of automation reduces the need for manual intervention and improves the safety of production.

4. FAQ

What is 1400 Corrugated board production line?

The 1400 Corrugated board production line is a special equipment for the production of corrugated board with a width of 1400 mm. The production line processes web base paper into high-quality corrugated board through a series of processes, which is widely used in the packaging industry.

What are the main components of 1400 corrugated board production line?

1400 corrugated board production line mainly consists of the following equipment:

- Base paper holder

- Automatic paper feeder

- Preheat the preheater

- Single side corrugating machine

- Double-sided machine

- Slitting and indentation machine

- Crosscutting machine

- Stacker

What is the working principle of 1400 corrugated board production line?

The working principle of the 1400 corrugated board production line is to make the base paper into single-sided corrugated paper by heating and pressurizing, and then two layers of single-sided corrugated paper are bonded together to form a double-layer corrugated paper. After the longitudinal indentation and cross cutting treatment, finally get the corrugated board that meets the requirements.

What is the production efficiency of 1400 corrugated board production line?

The 1400 corrugated board production line has an efficient production capacity and can usually produce thousands of square meters of corrugated board per hour. The efficiency depends on the model and configuration of the device.

How automated is the 1400 corrugated board production line?

Modern 1400 corrugated board production lines are usually equipped with advanced automated control systems to achieve the whole process of automatic control from raw material input to finished product output, reducing manual operation and improving production efficiency and product quality.

How to guarantee the safety of 1400 corrugated board production line?

1400 corrugated cardboard production line in the design of the full consideration of safety factors, equipped with multiple safety protection devices, such as emergency stop button, protective cover, etc., to ensure the safety of the operator.

What is the environmental performance of 1400 corrugated board production line?

1400 Corrugated board production line with environmentally friendly materials and low noise design to reduce the impact on the environment. At the same time, the waste generated in the production process can also be recycled to further reduce environmental pollution.
